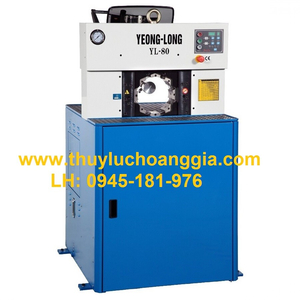

MÁY BÓP ỐNG THỦY LỰC YEONG LONG YL-80

MÁY BÓP ỐNG THỦY LỰC YEONG LONG YL-80

(1 đánh giá)

YL-80

YEONG LONG_TAIWAN

12 Tháng

YL-65 and YL-80 serial production crimpers can consecutive crimping hydraulic hoses or others products for many hours, you don’t need to lubricate the grease oil very often in machines. It’s gear to the factory whose need to crimping lots of output. The scope of crimping diameter from 4mm to 4 inch, if your hydraulic hose need to crimp to above the 2’’4 wires, we recommend you can consider our YL-65 and YL-80.

Hydraulic Crimping Machines

Serial Production Crimpers YL-80



YL-65 and YL-80 serial production crimpers can consecutive crimping hydraulic hoses or others products for many hours, you don’t need to lubricate the grease oil very often in machines. It’s gear to the factory whose need to crimping lots of output. The scope of crimping diameter from 4mm to 4 inch, if your hydraulic hose need to crimp to above the 2’’4 wires, we recommend you can consider our YL-65 and YL-80.

YL-65 和 YL-80連續大量生產扣壓機 可以數小時的連續生產扣壓管件或其他產品,不需像一般生產型扣壓機得經常潤滑。這類型機台應用於工廠廠家,誰需大量扣壓製造生產。扣壓範圍從最小4毫米至4英吋。若客戶所需的扣壓管配件的尺寸大於2’’4層的油管,我們建議使用YL-65及YL-80行扣壓機。



TECHNICAL DATA

最大扣壓管徑 Max Hose Size 4"
扣壓範圍 ( mm ) Crimping Range ( mm ) ψ4…ψ124
模具型號 ( mm ) Die Type 32/80
模具擴張度 Max. Opening ( mm ) +80
主要模具長度 Master Die ( Die / Length ) 97
馬達 ( kW ) Motor ( kw ) 5.5
電壓 ( v ) Voltage ( v ) 220 / 440
泵浦 ( 1/min ) Pump ( l/min ) 48
扣壓力 ( kN ) Crimping Force ( kN ) 3200
扣壓量 ( 每小時 ) Crimping Hour 2000
噪音值 ( dB(A) ) Noise level ( dB(A) ) 71
保護等級 Protection Class IP54
尺寸:長 ( mm ) Size : Length ( mm ) 980
   寬 ( mm )    Width ( mm ) 1000
   高 ( mm )    Height ( mm ) 1600
   重量 ( kg )    Weight ( kg ) 1350

STANDARD DIES SET SPEC

Code 32 32 32 32 32 32 32 32
Dimension 10 13 16 19 22 26 30 39
Crimping Range 10-13 13-16 16-19 19-22 22-26 26-30 30-39 39-45
Length 55 55 55 55 55 55 75 75

Code                            32 32 32 32 32 32 32 80
Dimension 45 52 57 64 69 74 78 84
Crimping Range 45-52 52-57 57-64 64-69 69-74 74-78 78-87 84-92
Length 90 90 100 100 100 110 110 120



Code 80 80 80 80
Dimension 92 100 108 116
Crimping Range 92-100 100-108 108-116 116-120
Length 120 120 120 120





ACCESSORY

  •
  •        Quick Change        快速換模
  •
  •      Manual Change          手動換模
  •
  •       Foot Pedal (A)腳踏開關(A)
  •
  • Back Stop Device定尺裝置
