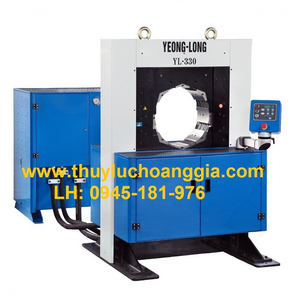

MÁY BÓP ỐNG THỦY LỰC YEONG LONG YL-330

(1 đánh giá)

Mã sản phẩm : YL-330

Xuất xứ : YEONG LONG_TAIWAN

Bảo hành : 12 Tháng

YL-125 and YL-330 support to industrial big diameter hose or tube. It can be crimping vary kinds of industrial hose as, mining, oil, petroleum, gas, water canal, chemical transportation, and construction use. The biggest of crimping diameter can crimp to 12 inch. If you are the factory whose offer the large diameter industrial hose, tube or steel pipe, please reference our YL-125 and YL-330.

Chi tiết

Hydraulic Crimping Machines

Industrial Crimpers - Big Diameters YL-330

YL-125和YL-330可被應用大尺寸的工業用管或管件。扣壓的範圍很廣，如工業軟管的採礦、石油、天然氣、運河、化學運輸、和建設用。最大扣壓管徑可扣壓至12英吋。若客戶的工廠設備裡需扣壓大型尺寸工業軟管或鋼管，請參考以下資訊 YL-125 及 YL-330。

TECHNICAL DATA

最大扣壓管徑	Max Hose Size	12"
扣壓範圍 ( mm )	Crimping Range ( mm )	ψ4…ψ335
模具擴張度	Max. Opening ( mm )	+155
模具擴張度	Max. Die 305 Opening ( mm )	460
模具擴張度	Max. Die Opening ( mm )	485
主要模具長度	Master die D/L	330/220
馬達( kw )	Motor ( kw )	7.5
電壓( V )	Voltage( V )	220/440
泵浦( 1/ min )	Pump ( l / min )	120
扣壓力(kN)	Crimping Force(kN)	8300
扣壓量(每小時)	Crimpings / hour	1200
噪音值 (dB(A))	Noise Level (dB(A))	71
保護等級	Protection class	IP54
尺寸：長 ( mm )	Length( mm )	1250/1180
寬 ( mm )	Width ( mm )	1200/940
高 ( mm )	Height ( mm )	1800/1300
重 ( kg )	Weight ( kg )	4500/500

STANDARD DIES SET SPEC

Code	125	125	125	125	125	125	125	125
Dimension	84	92	100	108	116	126	136	146
Crimping Range	84-92	92-100	100-108	108-116	116-126	126-136	136-146	146-156
Length	120	120	120	120	120	120	120	120
